Main Technical Parameters
Model | DZSJ-ABAF900 |
Suitable Material | LDPE/LLDPE/HDPE |
Film Width(mm) | 500-800 |
Film Thickness(mm) | 0.015-0.08 |
Max. Extrusion Output(kg/hr) | 80kg/hr |

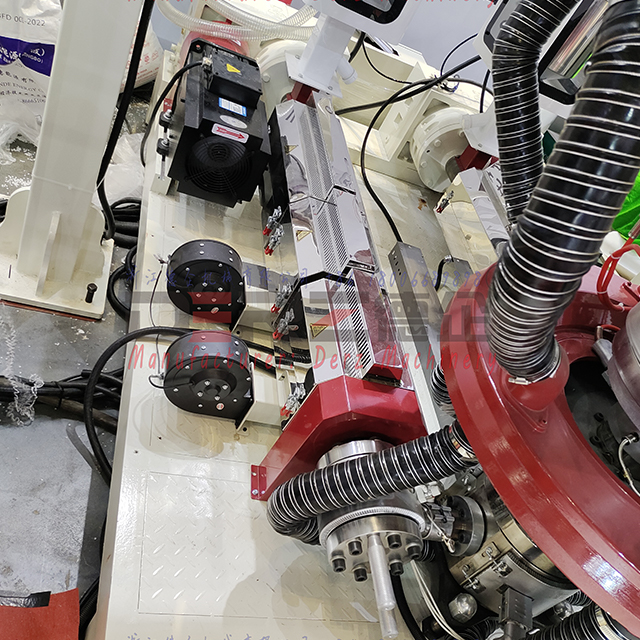

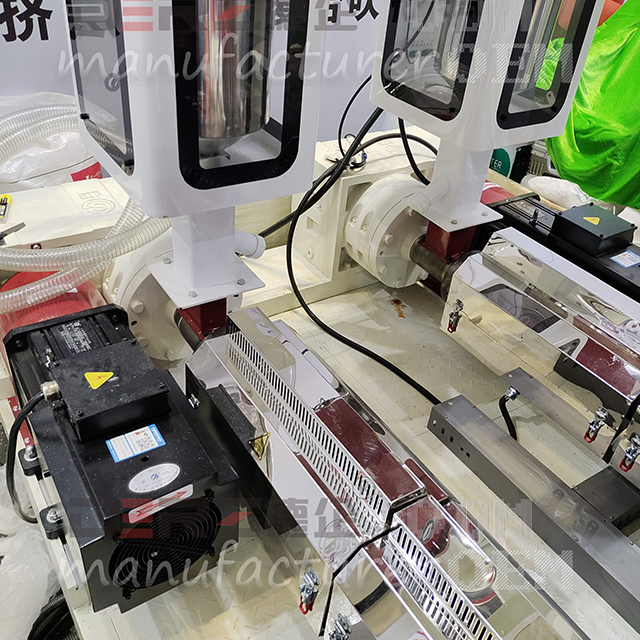

EXTRUDER | |
Screw Diameter(mm) | φ50×2 |
Screw L/D Ratio | 30:1 |
Screw Material | SACM-645/38 CRMOALA |
Cylinder Material | SACM-645/38 CRMOALA |
Cylinder Cooling | 180w×2-2 |
Driving Motor(kw) | 18.5kw |

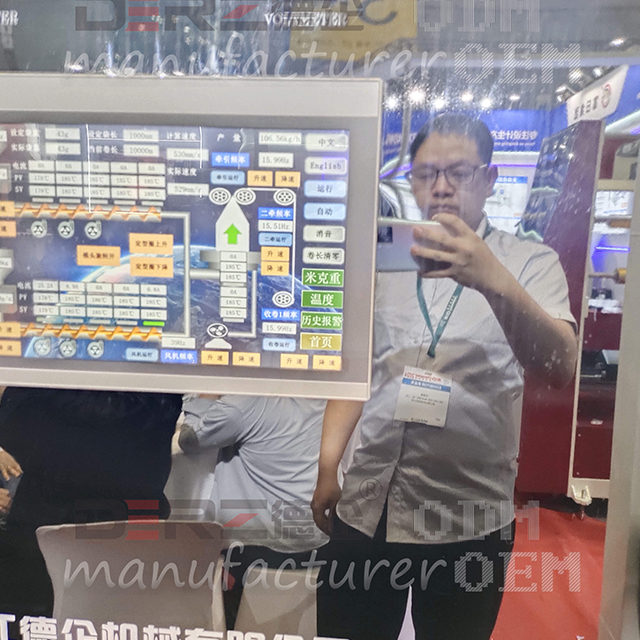

Temperature Control | 3 |
Average Power-consume(kw) | 36 |

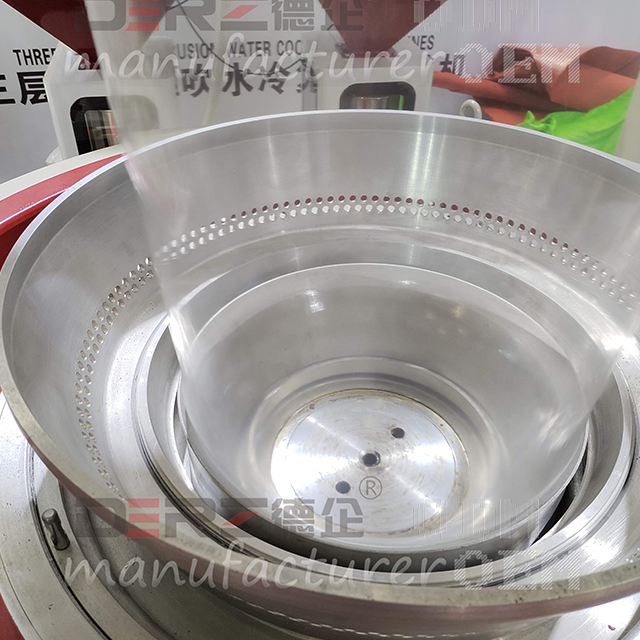

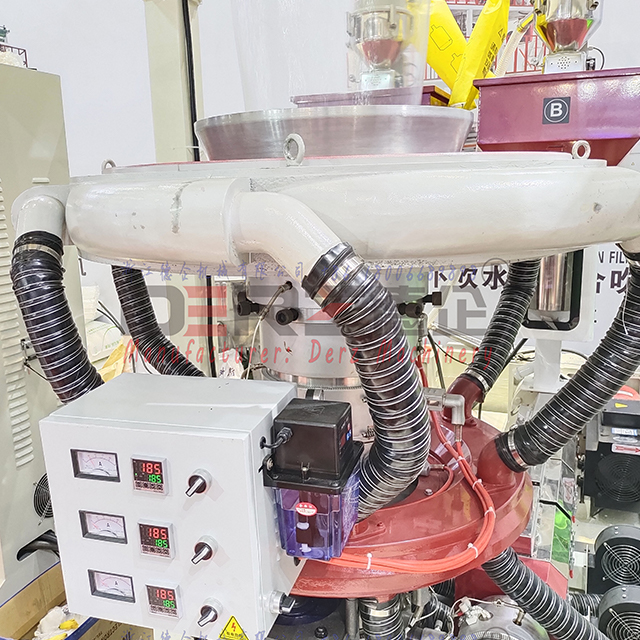

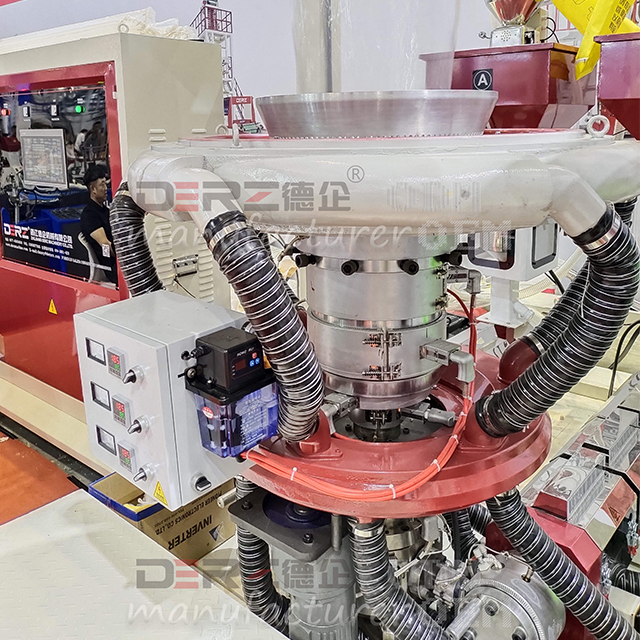

DIE HEAD | |
Die Size(mm) | φ80 |
Rotary | 360° |
Temperature Control | 2 |
Air Ring | φ800 |
Air Blower(kw) | 4kw |

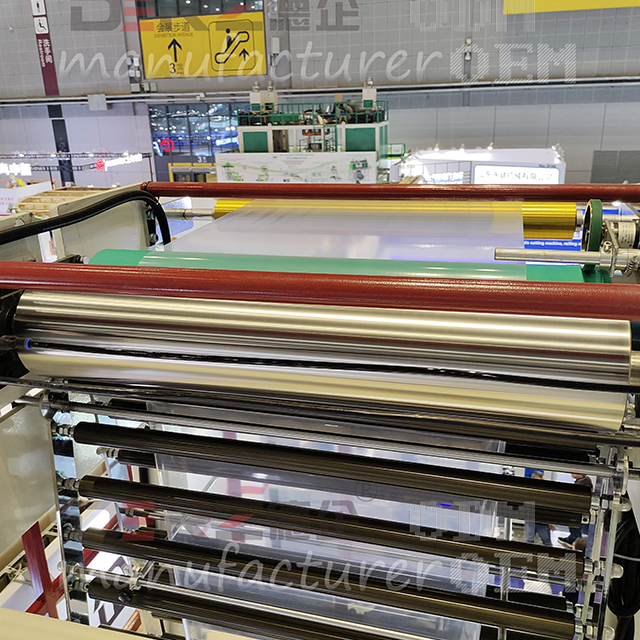

TAKE-UP UNIT | |
Roller Width | φ140×900 |
Effective Width | 800mm |
Take-up Speed (m/min) | 10-100 |
Take-up Motor (kw) | 1.1 |

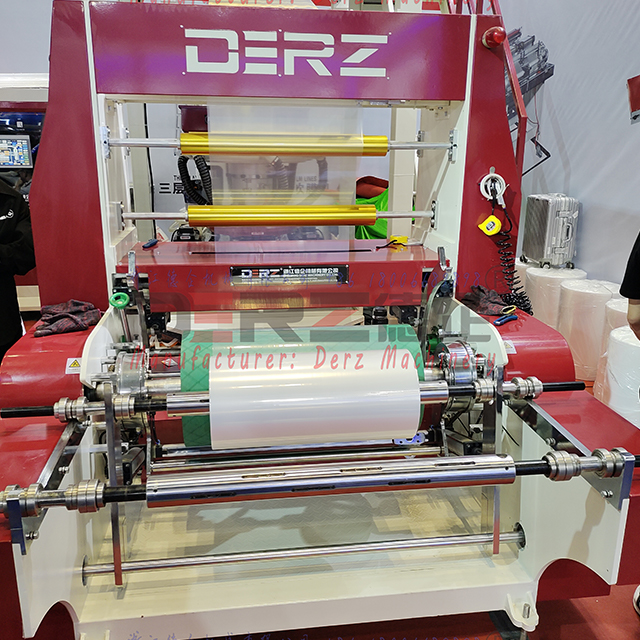

WINDING UNIT | |
Winding Motor (kw) | 1.5 |
Winding Speed (m/min) | 10-100 |
Overall Dimension(L×W×H) | 7×2.7×6.5m |
 |  |  |  |
 |  |  |  |
 |  |  |  |
